ASCHER-RACING DASHBOARD

Name: ASCHER-RACING DASHBOARD
Brand: Ascher Racing
SKU: 76080028
Price: 379 EUR
Availability: BackOrder

Reference 76080028

Backorder

€379.00

Tax included Delivery in 14 days

Everything at a glance. Our dashboards with high-grade cases made from CNC-machined aluminium look irresistibly good. And they are also state-of-the-art. Thanks to the compatibility with SimHub, you can configure your dashboard individually for each race and for each game

Size

COMPACT DESIGN. POWERFUL DISPLAY.

As the community of Ascher Racing is quite accustomed to, we have also invested a lot in engineering for our 4" and 5" dashboards. For example, the housing is made of aluminum. The LEDs are separated, and the 16-bit color display with a resistive touchscreen is easy to read with 350 lumens. Of course, you can operate the touchscreen with your racing gloves. All data is displayed in real-time on the touchscreen with a resolution of 800 x 480 pixels or 854 x 480 pixels. So, you have all the information about your race and race car at a glance!

FREE PROGRAMMABLE AND HIGH LUMINOSITY DISPLAY

The 21 colored LEDs in the Ascher Racing Dashboards are each located in individual borings, which means that no light interference can occur. Thanks to the compatibility with SimHub, you can control and configure each LED individually. So you have all freedom to configure the LEDs for flag signals, fuel gauge, changing gears, or anything else on your dashboard LEDs. Each LED can display up to 16 million colors.

REAL ASCHER RACING

We at Ascher Racing never do things halfway and took our high-quality button plates and steering wheels as a pattern for our dashboards. Thus, the design of our dashboards fits harmoniously with our steering wheels. Due to the compatibility with SimHub, our dashboards are completely free programmable in their function. It's up to you which telemetry data you want to display on the dashboard. Or you can use the countless dashboard presets from the community if you don't feel like creating your display with the dash editor.

ANODIZED ALUMINUM FOR BEST QUALITY

Our case does not come from a 3D printer, but we mill from aluminum. The anodized aluminum case is extreme compact and the entire display is only 18 millimeters strong. Whether you choose the 4" or the 5" dashboard, you can place both well in front of your screen. Power and data are supplied at the back via an included angled USB-C cable. We have also put the power button there.

COMPATIBLE WITH THE MOST COMMON WHEELBASES

Simucube 1 / 2
Fanatec Wheelbases
VRS Direct Force Pro
Mige & Lenze Motoren
Simagic

LEDS

A total of 21 LEDs display up to 16 million colors. So that you have everything in view, we have arranged 15 diodes horizontally and three diodes vertically on each side of the display. So that the LEDs do not overlap in their colors, each diode sits in its own drilling.

USB-C

Power is supplied via a USB-C port. The included cable is of course angled.

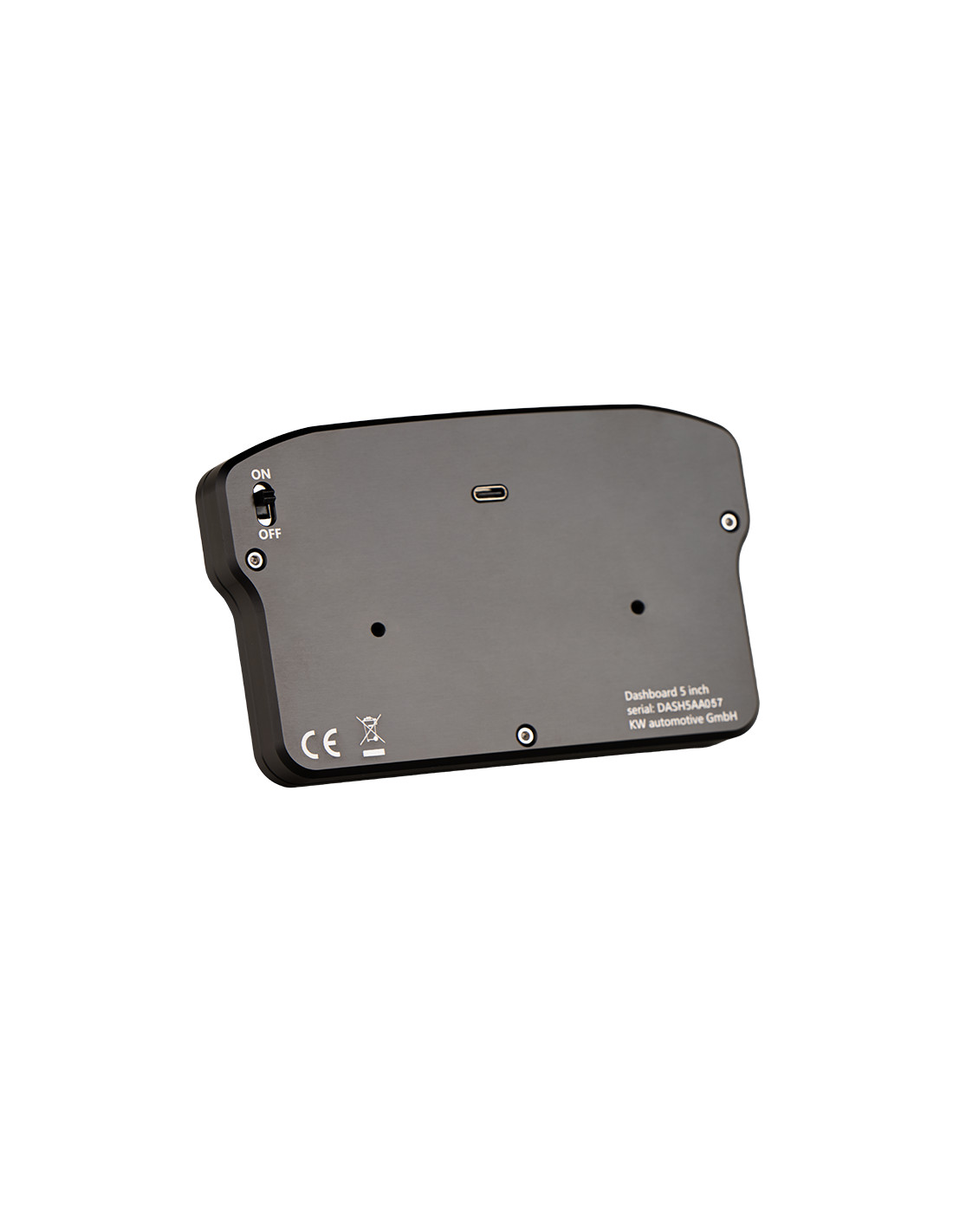

ON-OFF SWITCH

Both dashboards have an on/off switch on the back.

SIMHUB INTEGRATION

For our Ascher Racing Dashboards, you can find numerous presets on SimHub or simply configure your own LED profiles or dashboard designs if you want something unique for yourself.

MOUNTING BRACKETS

Included are the matching carbon mounting brackets to mount the dashboard to various wheelbases such as SimuCube, Fanatec and Co.

DISPLAY PERFORMANCE DATA

4'' Dashboard Display size: 86 x 53 mm
4'' Dashboard Resolution: 480 x 800 px
5'' Dashboard Display size 109.6 x 61.6 mm
5'' Dashboard Resolution 480 x 854 px
Touch operation, e.g. changing the dash pages
16bit colors
350 lm brightness

SOFTWARE INTEGRATION:

Offficial SimHub integration
Countless dash designs and LED profiles available
Incl. Ascher Racing dash design and LED profile
- direct integration of the Ascher Racing steering wheels
- e.g. clutch pop-ups from F64 USB/ SC
- iRacing: vehicle specific LED profiles incl. telemetry optimized & gear dependent shift timings
Unlimited setup possibilities (telemetry values, formulas, etc.)
User-friendly dash editor

21 PCS. RGB LEDS

15 pcs. arranged horizontally and 2 x 3 pcs. arranged vertically
16 million possible colors
Extremely bright, e.g. for switching flash and flag signals
Unrestricted viewing area
No light coupling from adjacent LEDs

HIGH PROCESSING QUALITY

CNC machined and anodized from automotive aluminum
Only 18mm thick & angled USB-C cable
Only 1 connection cable needed
ON-OFF switch on the back

COMPATIBILITY

Simucube 1 / 2
Fanatec Wheelbases
Asetek Wheelbases
VRS Direct Force Pro
Mige & Lenze motors
Simagic

WHAT'S INCLUDED

Carbon mount
Required screws for mounting
Spacers made of aluminum for individual adjustment of the distances
Dashboard 4" or 5"
