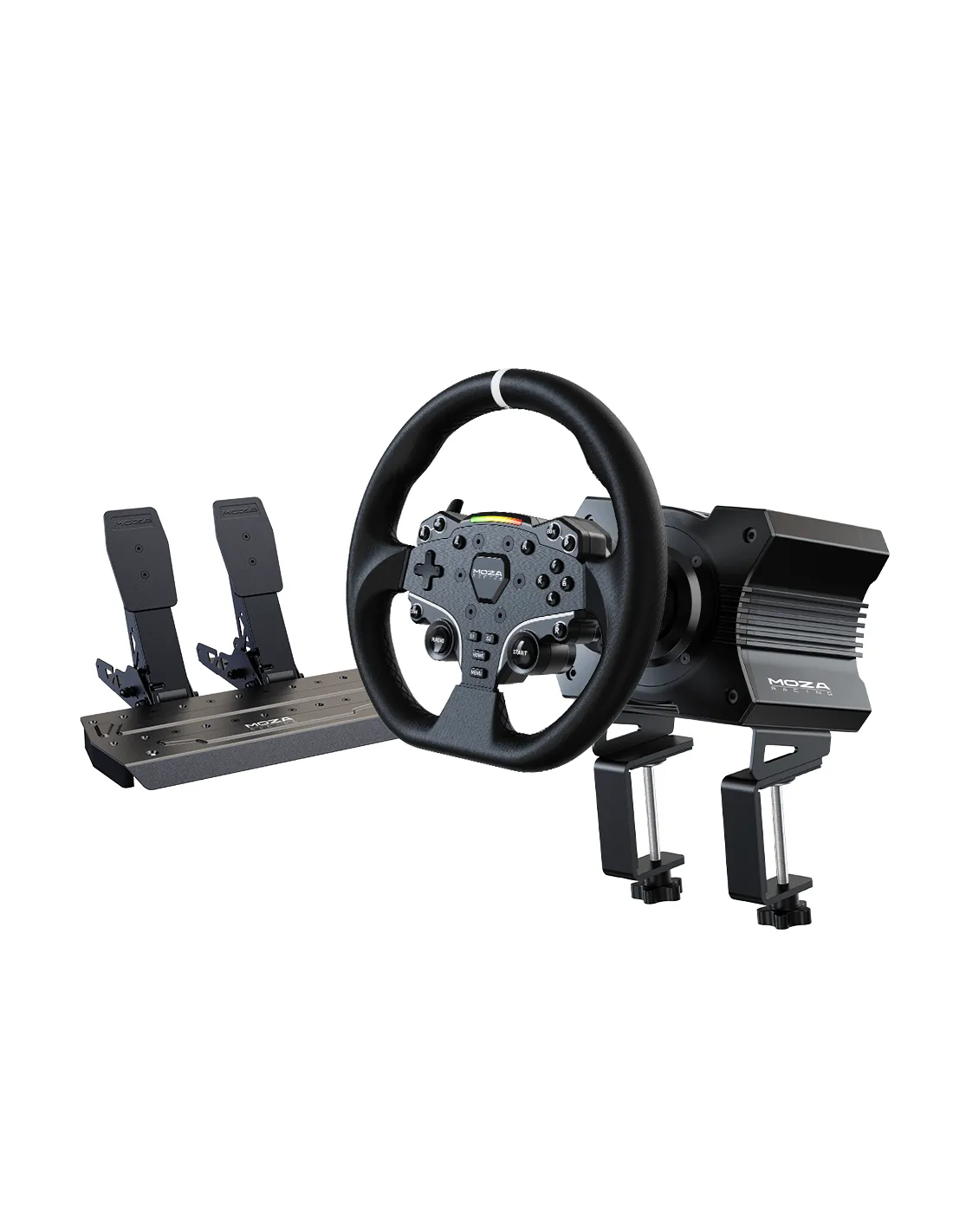

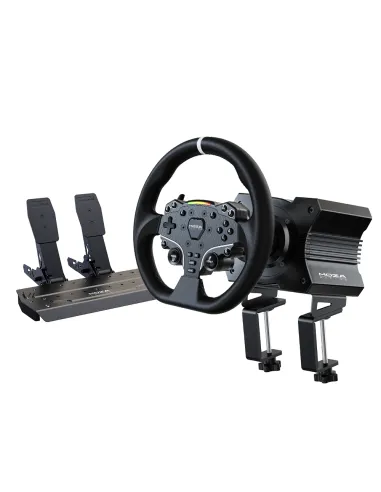

Moza R5 bundle for PC
Moza R5 bundle for PC
Moza R5 bundle for PC
Moza R5 bundle for PC
Moza R5 bundle for PC
Moza R5 bundle for PC
Moza R5 bundle for PC
Moza R5 bundle for PC
Moza R5 bundle for PC
Moza R5 bundle for PC

Moza R5 bundle for PC

RS20
In Stock
€599.00
Tax included Delivery in 1-3 days

Experience the next level of racing with the MOZA R5 Bundle. With its impressive 5.5 Nm torque direct drive, customizable driving modes, and robust aluminum, leather, and steel construction, it’s designed to provide unparalleled immersion and durability. The MOZA Pit House control center offers convenient device monitoring, settings adjustment, and preset loading. Elevate your racing setup today and embrace a new era of performance and precision.



5.5 Nm of torque from direct drive power

With a punchy 5.5Nm of torque, feel everything the road has to give with the power of direct drive.

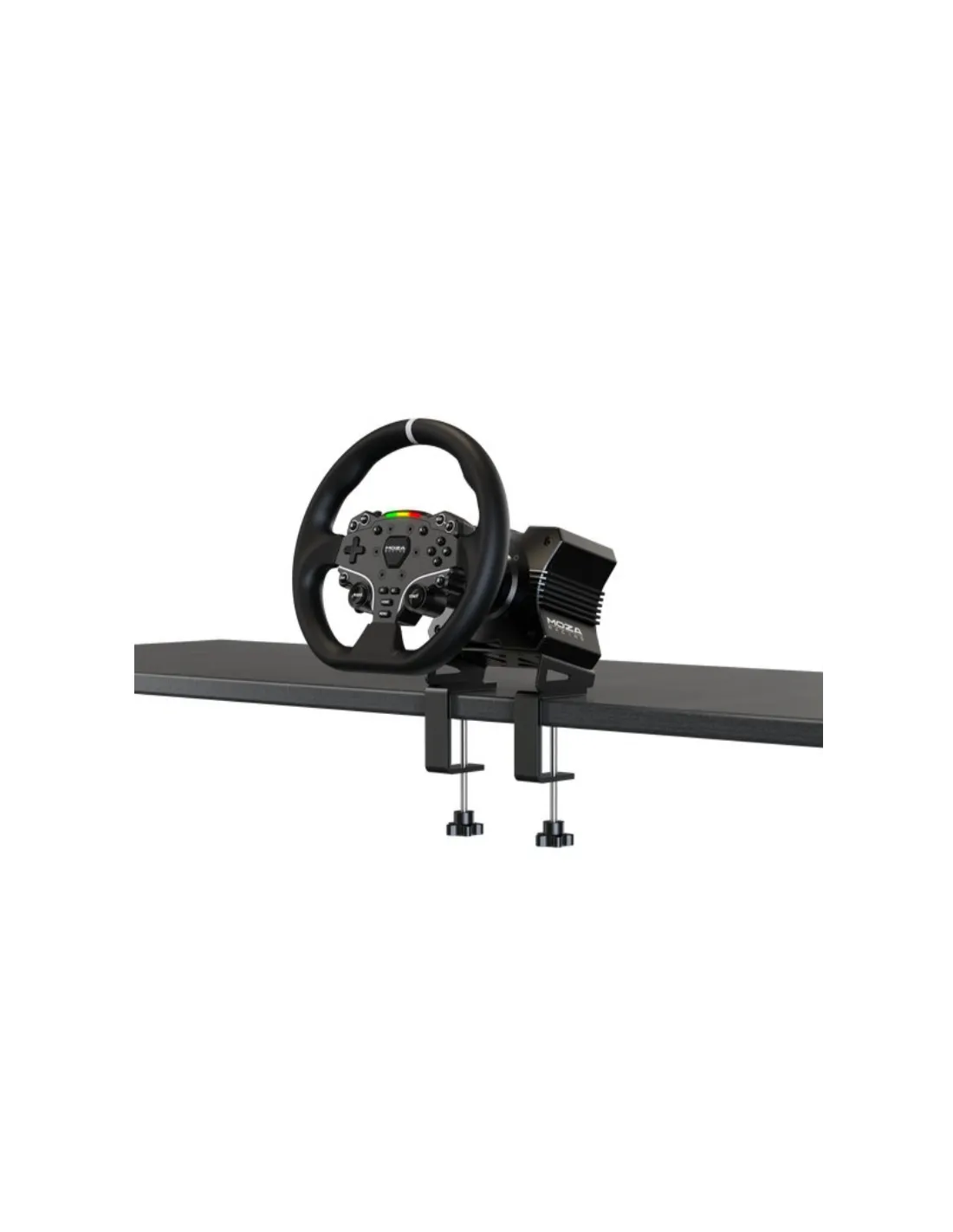

Race in limited space

Use the R5 table clamp that comes with the bundle to mount the MOZA R5 to a table or desk.

MOZA Pit House

The MOZA Pit House Control Center allows the racer to check equipment status, adjust settings, and load presets such as GT, Performance Car, Formula, Rally, Drift, or Kart driving modes.

One click ecosystem upgrading

When firmware needs to be updated, users can upgrade all devices in control center with just one click.

Cloud-based App Control

The settings of the wheel base, steering wheel, pedals, etc. can be modified through the MOZA APP.

Wheel base dimensions

COMPATIBILITY

Weight
3.45 Kg
Length
174 mm
Width
157 mm
Height
124 mm
Max torque
5.5 Nm
3 Items
0723497239493

Specifications

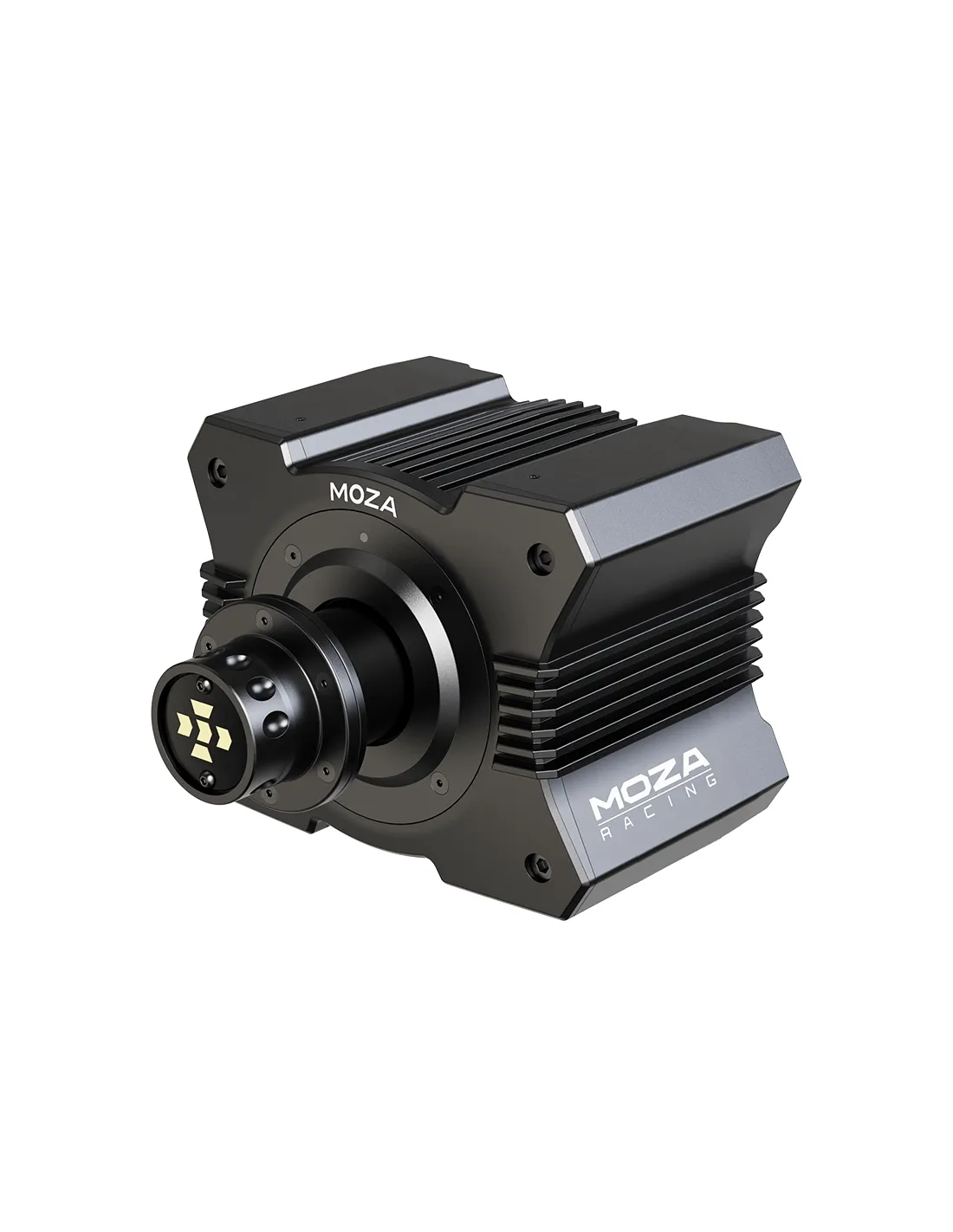

Moza R5 wheelbase

  • Platform: PC
  • FFB Drive System: Direct Drive
  • Max Steering Angle: Infinite Rotation
  • Housing Material: Aviation Grade Aluminum Alloy
  • Color: Black
  • Peak Torque: 5.5Nm
  • USB Refresh Rate: 1000Hz
  • Input Voltage: 110V~220V AC —>12V DC
  • Encoder Resolution: 15 bits
  • App Functions: Supported
  • Quick Release: Supported
  • Interface: Power, Data, Display, Pedals, Wheel Input
  • Accessories: User manual, Warranty card, Power supply, USB cable, Toolkit
  • Mounting Method: 4 holes on the bottom
  • Desktop Mounting Clip: Standard
  • Online Firmware Upgrade: Supported
  • Emergency Stop Switch: Optional
  • Firmware Upgrade: Applicable

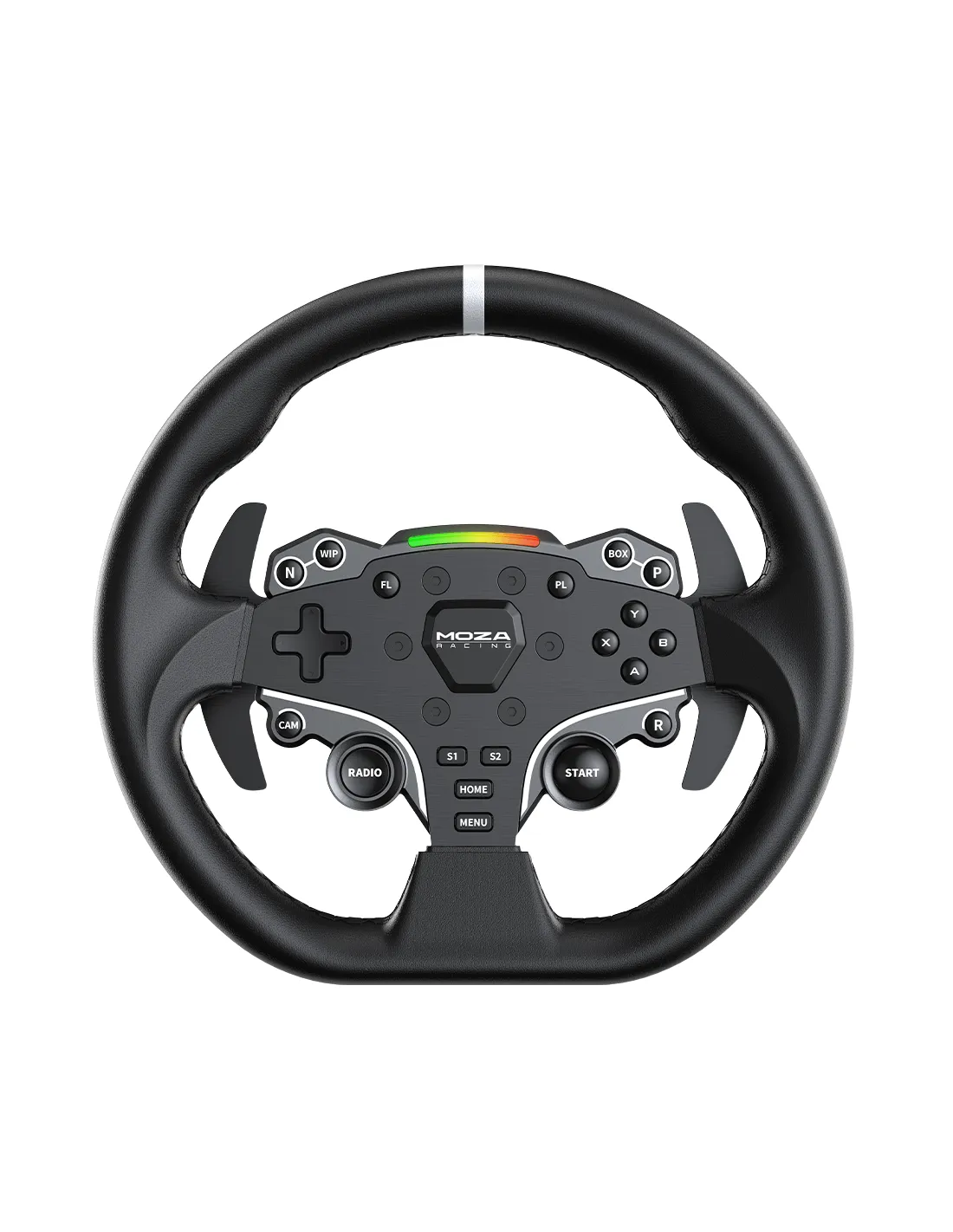

ES Steering wheel

  • Wheel Material: Microfiber Leather
  • Frame and Front Plate Material: Aluminum Alloy
  • Dial Material: Aluminum Alloy
  • Size: 280 mm
  • Buttons: 22
  • LED Lamp Beads: 10
  • Intelligent Telemetry: Supported
  • Configurable LEDS (MOZA Pit House): Supported
  • Disassembly method: Quick Release System

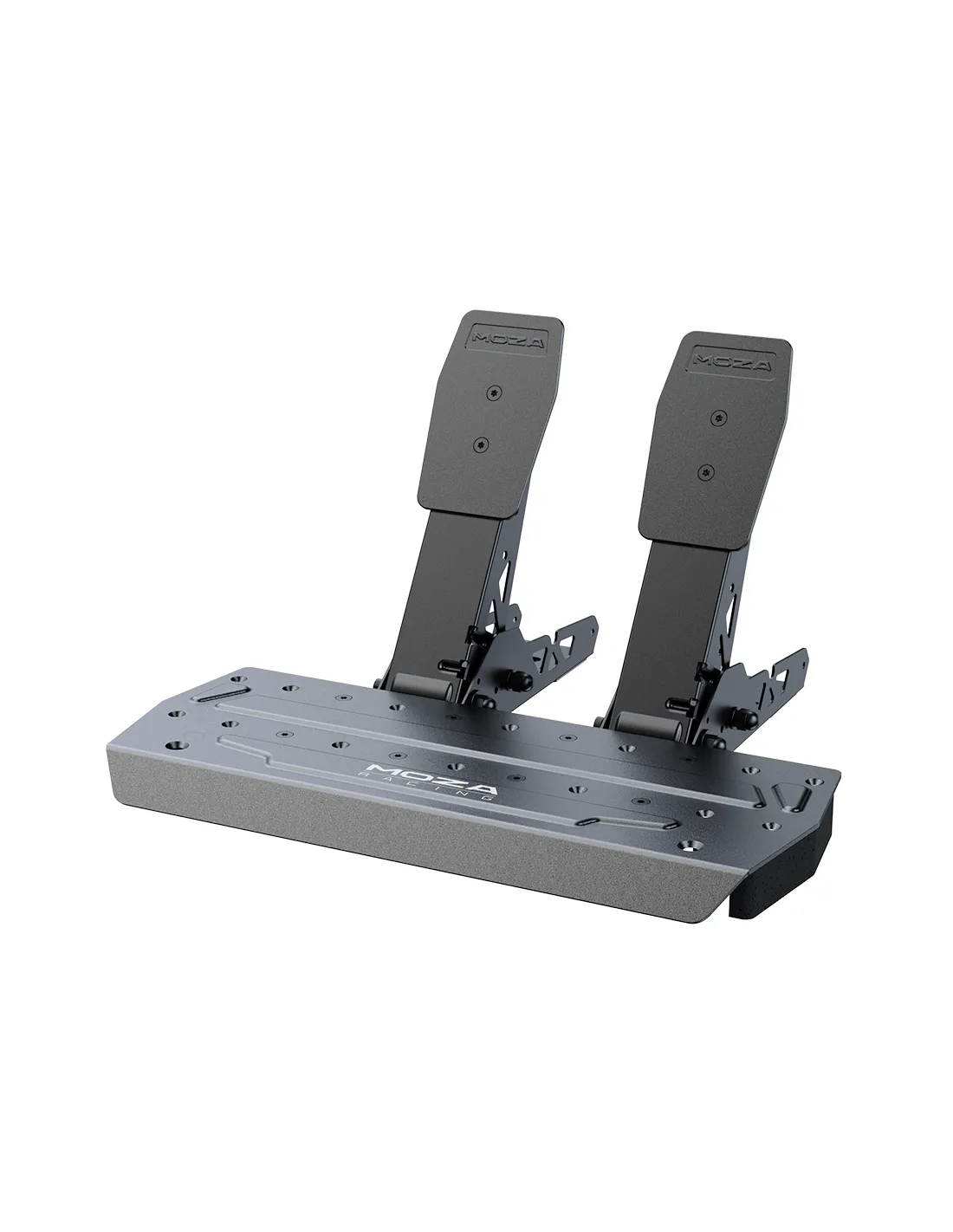

SR-P Lite pedals

  • Material: High-strength Steel
  • Plate Material: High-strength Steel
  • Color: Black
  • Pedal Sensor Type: Hall Sensor
  • Pedal Spacing: Adjustable
  • Pedal Plate Height: Adjustable
  • Pedal Input Adjustment: Supported
  • Pedal Input Reversal: Supported
  • Pedal Output Curve Adjustment: Supported
  • Anti-Slip Pad: Included

What's in the box

  • R5 Wheel Base x1.
  • ES Steering Wheel x1.
  • SR-P Lite Pedals (No Clutch) x1.
  • R5 Table Clamp.
  • 15 Degree Desktop Mounting Clip.
  • Power Supply.
  • Power Cord - AC cable (1.5m) & DC cable (1.8m)
  • USB Cable (1.8m)
  • M6*20 Socket Head Screws x2
  • M8 Nuts x3
  • M6x12 Socket Head Screws x4
  • Pedal Fixed Rubber Columns x2
  • 2.5mm Hexagonal Wrench x1
  • 7mm Open End Wrench x1
  • 5mm Hexagonal Wrench x1
  • Type A to Type B USB Cable x1 (1.8m)
  • M8*12 Hexagonal Screws x3
